Fire-fighting drones are mainly composed of rotary-wing drones and fire-fighting tanks. Using the drone's high mobility and flexibility, it can mount fire extinguishing bombs and fire-fighting equipment to quickly lift into the air. After reaching the designated height, fire the fire according to the needs. The operation of popping and breaking the window, and then spraying dry powder from the window position through a special nozzle for high-level fire extinguishing, remote wireless control operation, to achieve fast, safe and effective fire fighting. Mainly used for fire fighting in high-rise buildings in cities. At the same time, the imaging module of the UAV can be used to collect and transmit all the situation of the fire scene to the on-site headquarters, and conduct emergency management and command on the situation of the fire scene, and provide strong support for the development of rescue.
| Diagonal wheelbase | 1500mm | Maximum level flight speed | 15m/s |
| Rotation diameter | 2350mm | Maximum climb speed | 10m/s |
| Machine Height | 650mm | Maximum landing speed | 5m/s |
| Body material | Aviation aluminum fuselage | Safety and wind resistance level | Level 7 |
| Battery specifications | 12S/56000mAh | IP protection level | IP54 |
| Curb weight | 42kg | Working environment temperature | -20°—50° |
| Maximum safe takeoff weight | 67kg | MTBF mean time between failures | 200 ups and downs |
| Maximum safe load | 25kg | Navigation and positioning | RTK + Dual antenna DF |
| Maximum flight altitude | 5000m | positioning accuracy | Positioning error ≤ 0.5m |
| Height of flight | 500m | Flight Mode | Manual / stable / autonomo |
| No load endurance | 25min | Control equipment | Hand held ground station |
| Full load endurance | 15min | Remote control distance | 2km |
| Data link distance | 5km | ||
| Image link distance | 5km |

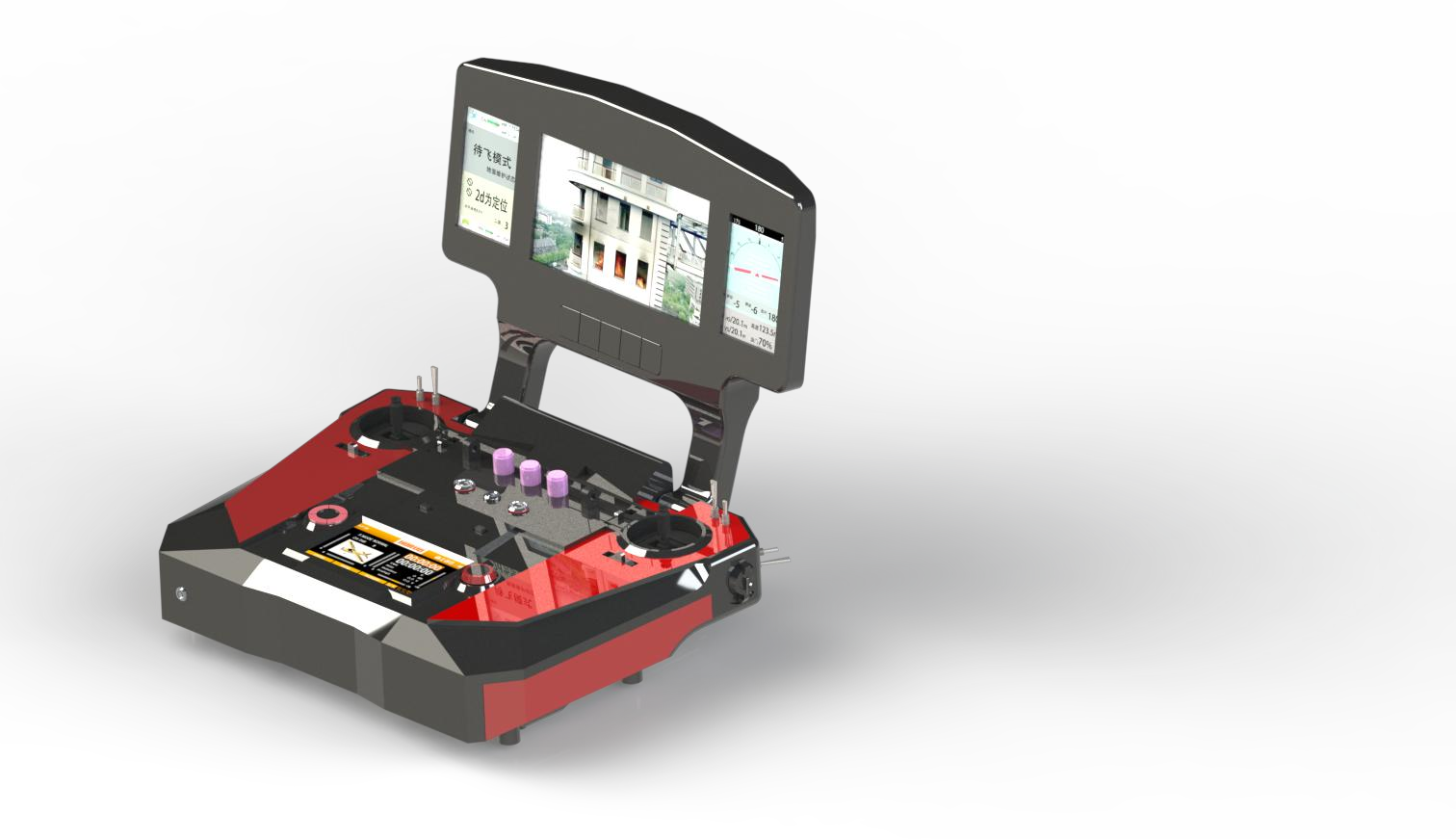

Intelligent Integrated Remote Controller
1. Frequency 2.4 G, remote control distance (> 5 KM); 3. Dual control system backup with ground station.
2. Design of three-protection switch;
3. Dual control system backup with ground station.

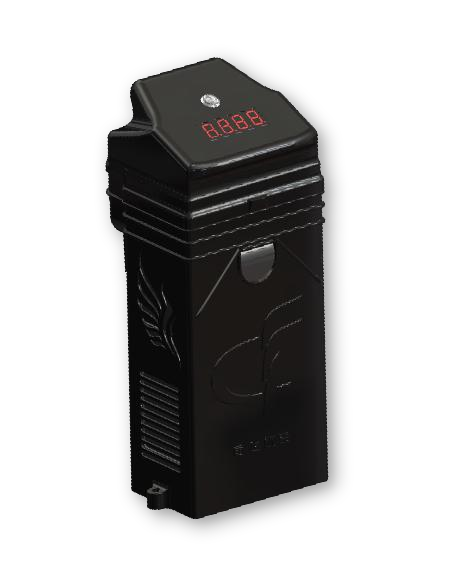

Smart Lithium Battery
12S1P,
10C,
14000mAH
Polymer lithium battery

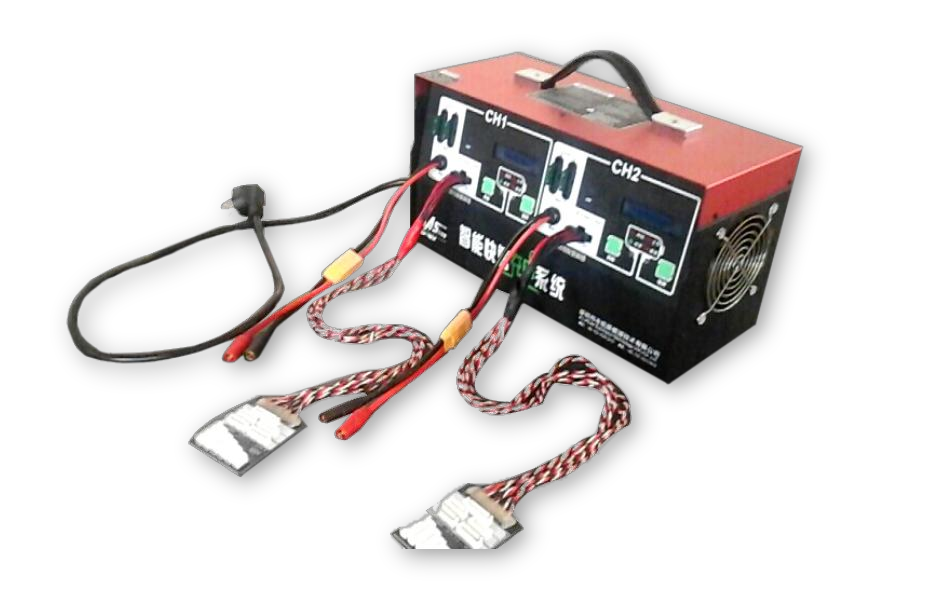

Intelligent lithium battery charger
12S
3000W
Fast lithium battery charger

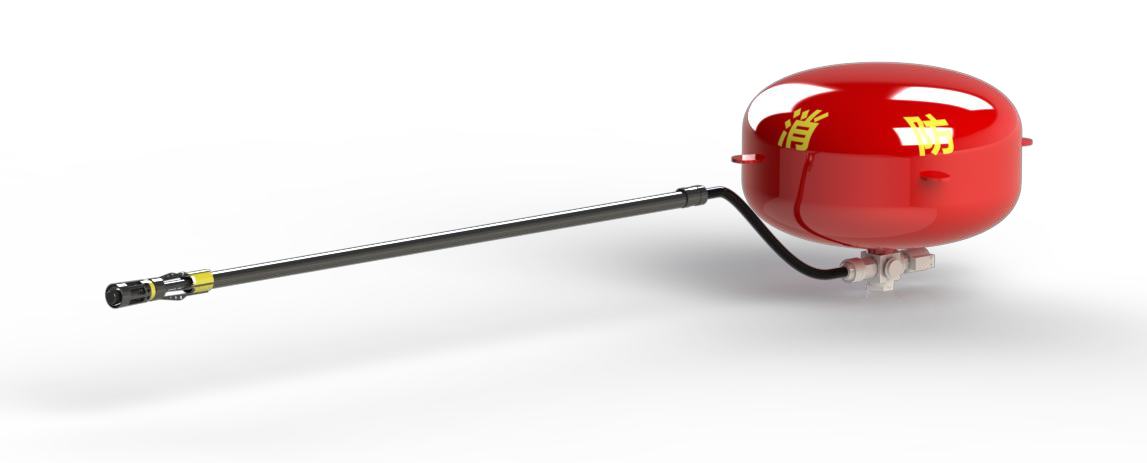

1. Maximum volume: 25L
2. Maximum pressure: 2.2 MPa
3. Longest Range: 10m
4. Storage environment: - 20 50.
5. Trigger Switch: Wide Voltage Electronic Valve
4. Storage environment: - 20 50.
1. Maximum payload: 7kg
2. Maximum effective range: 10 meters
3. Supplementary function: window breaking function
4. Fire-extinguishing bombs can cover 25 m of airtight space instantaneously.
5. Rescue bombs can carry many kinds of relief materials.
1. Bullet Quantity: 18 Broken Window Bullets
2. Emission mode: single electronic trigger
3. Limit window breaking efficiency (10m): 12+12+12mm hollow tempered glass
4. Mistrigger Protection: Level 1 Physical and Level 2 Electronic Protection
