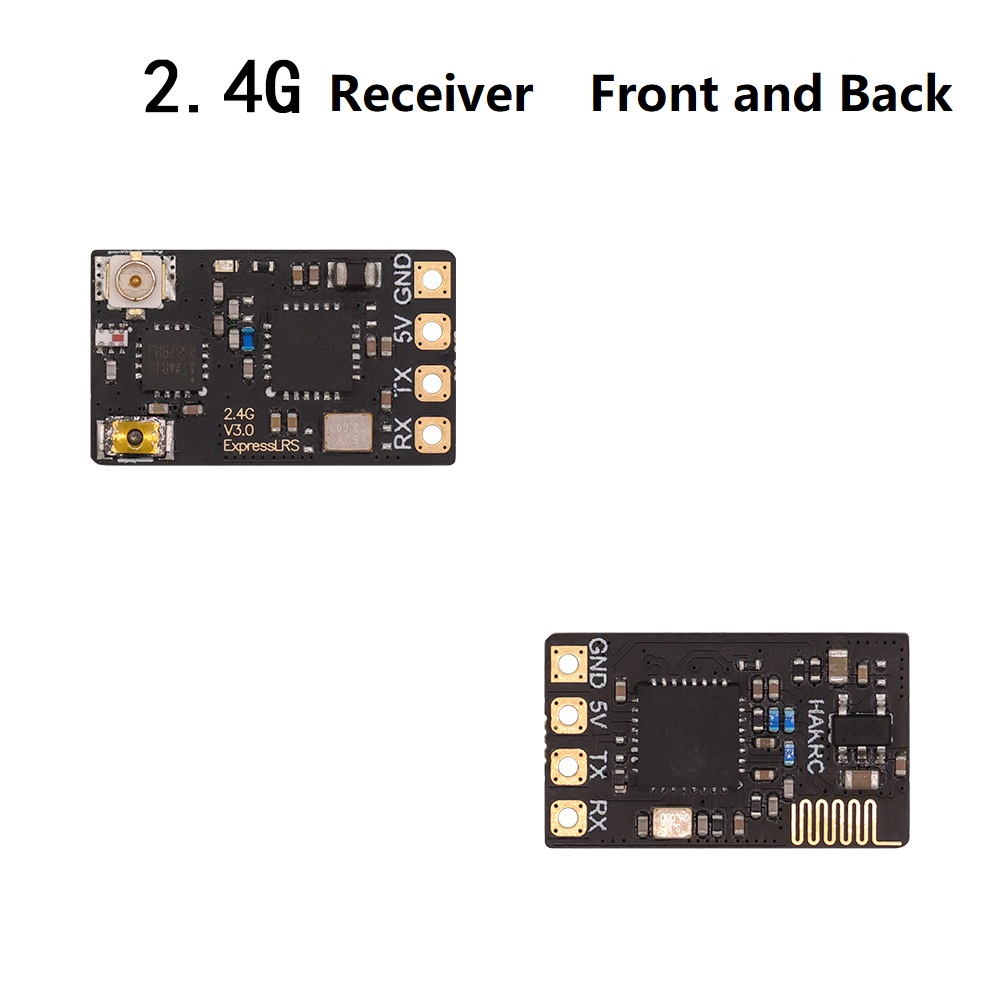

ELRS Receiver 2.4G
Product Specifications
Model:ELRS-2.4G
Name:ExpressLRS Receiver
Frequency: 2.4G
Antenna: T type
Chip: ESP8285H16+SX1280IMLTRT
Return power: 50mW
Input voltage: 3.3V-5.5V
Weight: 0.8g (receiver only)
Size:11mm*18mm
Receiver indicator light:
Double flash (code matching mode)/slow flash (no transmit signal received)
Steady on (receiving transmission signal)/fast flashing (WIFI upgrade mode)
The receiver is powered on and off three times in rapid succession to enter the code pairing mode, and after 60 seconds it enters the wifi upgrade mode.
