DF001 Tethered Drone Emergency Operation Capability

DF001 Tethered Drone Emergency Operation Capability

In recent years, the development of tethered drones has been accelerating. The development of drone technology and the increasing maturity of communication technology have provided more convenient means for emergency rescue, lighting, disaster monitoring, emergency communications, etc.

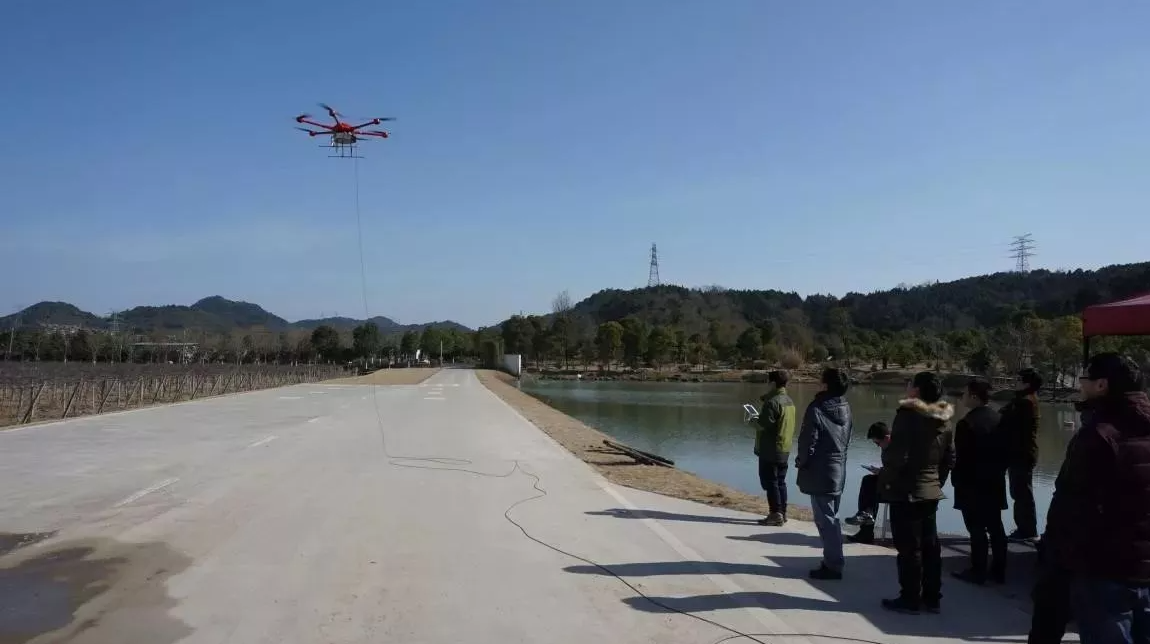

“DF001” is a tethered six-rotor UAV newly developed by Jiangsu Speed Aviation Co., Ltd. It is rainproof and windproof, lightweight and corrosion-resistant. "DF001" continuously supplies power to the six-rotor drone through a cable, allowing the drone to hover in the air for a long time.

Configuration 1; Hexacopter UAV

Standard configuration: Emergency landing battery, charger, remote control, packaging box.

Overall machine expansion size: 1930mm Motor wheelbase: 1405mm;

★Normal take-off weight: 11kg, take-off weight: 18Kg

★Can level flight speed ≥70km/h;

★Available ceiling: ≥5000m (takeoff at sea level);

★Operable working altitude: ≥4700 meters, normal takeoff, landing, hovering and flying possible

★Normal weight flight time: ≥70min;

★Load hovering time: ≥45min (3kg) ≥30min (5kg)

Endurable mileage: ≥25km;

★Flight and climbing capabilities: Climb rate 7m/s; Descend rate 3m/s;

★Wind resistance: Allowable wind force for take-off and landing ≥ Level 5 wind / Allowable wind force for flight ≥ Level 6 wind;

Flight attitude stability: pitch angle 2°/roll angle 2°/yaw angle 2°;

Track control accuracy: 3m in vertical direction, 2m in horizontal direction;

★Effective measurement and control distance: ≥30Km (system is stable, remote control and telemetry are normal, and image transmission is normal);

★Reliability: trouble-free flight time ≥50 hours;

Anti-interference function: If the navigation signal is interfered, keep the current altitude without landing, and resume normal operation after the interference is eliminated. If the remote control signal is interfered, it will automatically return to home and land. The ground station and the remote control use different frequencies. When the remote control is interfered, you can The ground station takes over the control of drone flight;

Supports two navigation modes: GPS and Beidou;

Broken propeller protection: Even if the single-arm propeller blade is damaged or the motor fails, it can still fly, hover, and land normally;

Rainproof ability: can take off, hover and land normally in rain within 30 mm;

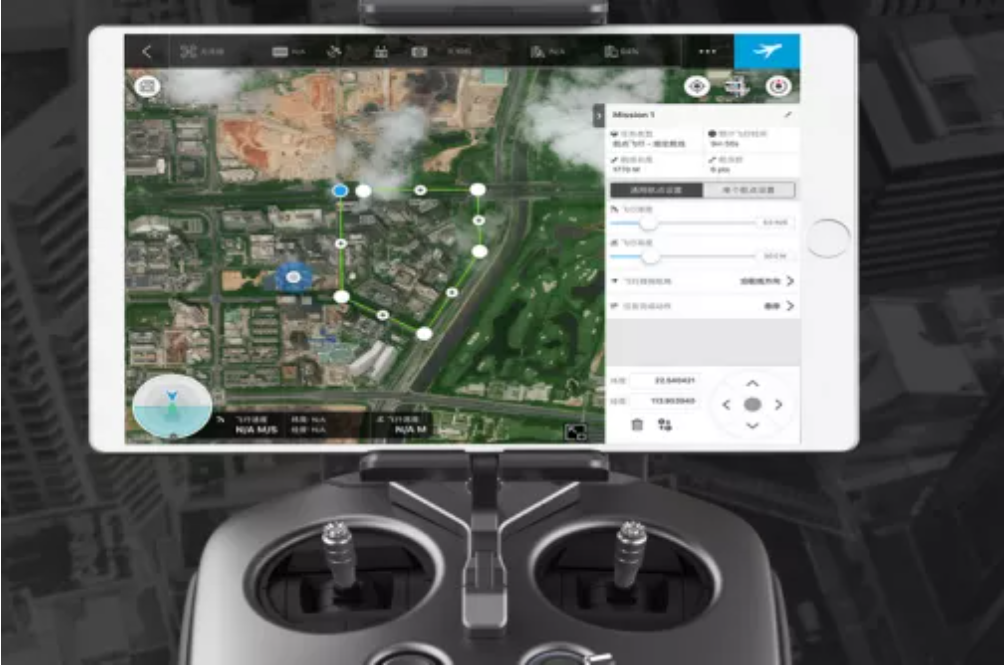

Configuration 2: Handheld Ground Station Image Receiving Control Terminal

The handheld ground station control terminal adopts three-proof design, protection level PI54

Equipped with HDMI network port, SDI interface, dual serial port transparent transmission, and supports wireless RTSP video stream sharing

Working voltage; DC8.4V;

Battery capacity 4000mAH

Frequency range; 2400MHz-2483MHz

RF bandwidth; 8M

Receiving sensitivity; ≤-92dB

Number of channels 16

Adopt new FHSS frequency hopping

RF power 23-32DB

Charging interface TYPE-C

Equipped with expansion interface CAN

Battery life 6-20 hours

Resolution; 1920*1200

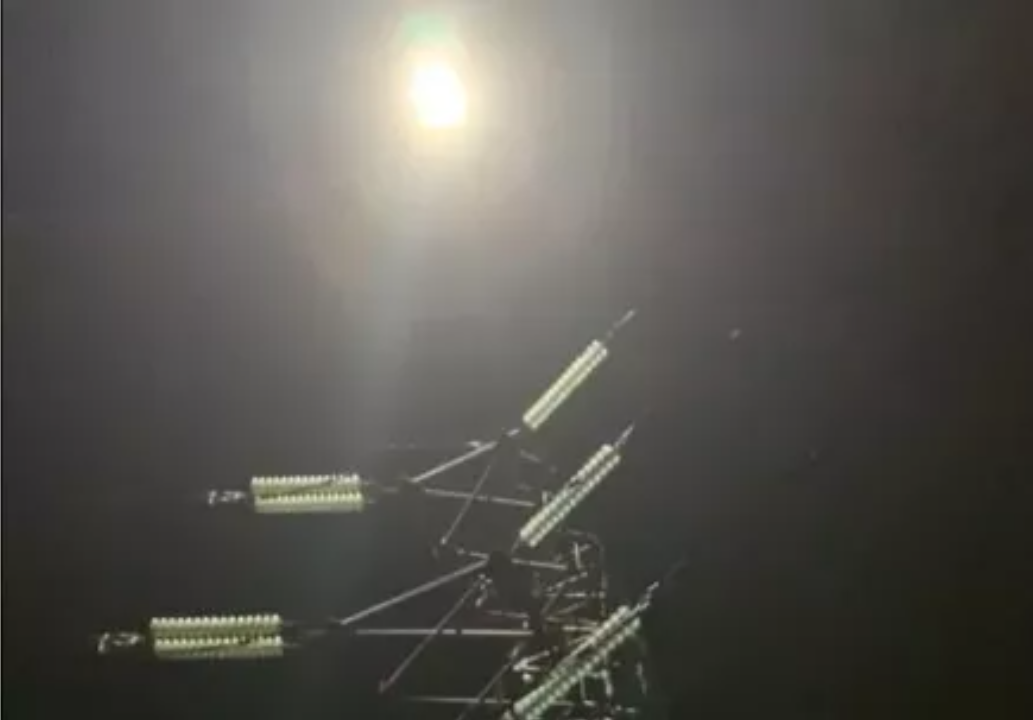

Configuration 3: Tethered Aircraft Array Searchlight

This equipment is mainly used for night lighting of drones, especially for continuous lighting of tethered drones;

Product advantages: 20~60vdc wide range input, always on when turned on, automatic temperature control detection, no lamp beads burned, light weight, high lumens, low power.

Size 200mm*35mm*25mm ，Weight 200G 。Power 80W

Input voltage 20V-60V

Working current 1.3A-4A

Automatic temperature protection starting point 60︒C

Luminous flux 10000lm

Binding arm diameter 20~40cm

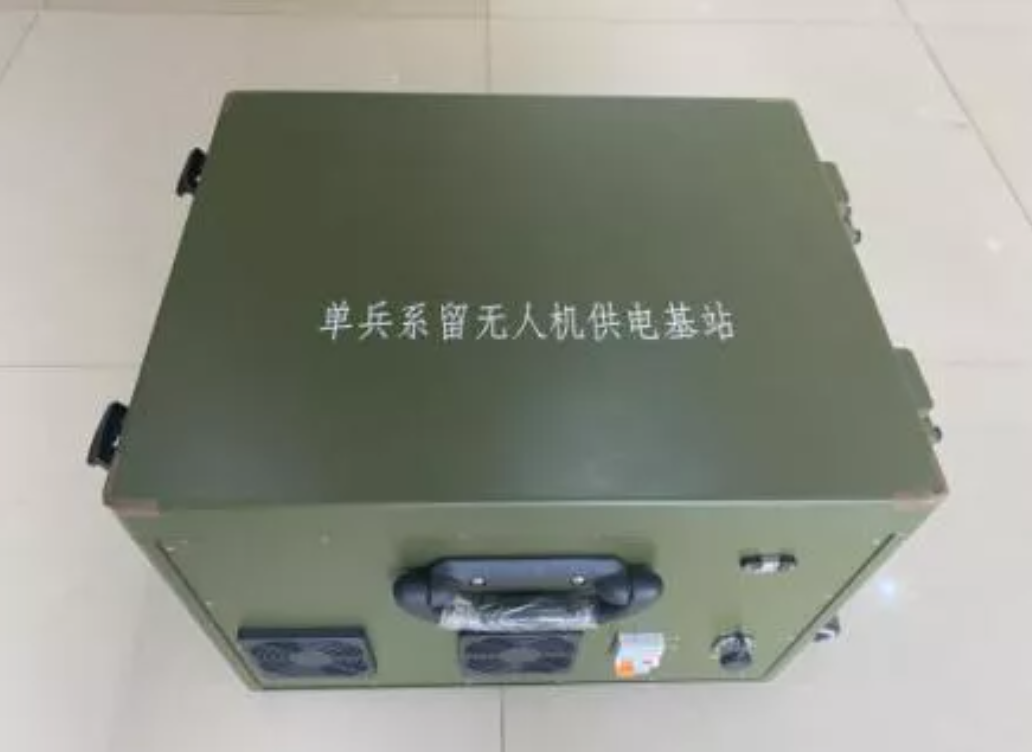

Configuration 4: Tethered Ground Station Base Station

Features

The DC high-voltage winch cable system can realize automatic retracting and unwinding wires, and can adjust the tension and speed of the retracting and retracting wires to match aircraft with different takeoff weights. The retracting and retracting wire accuracy can reach 0.01m.

Line length 110m

Output voltage 380-420V

Power (output) 3500W

Input voltage 220Vac 50Hz

Cable tensile strength 50kg

Retracting and unwinding system automatic

Whether it contains optical fiber (determined according to customer needs) Weight 30KG

With the further development of drone technology and communication technology, tethered drones can provide different functional operations according to actual on-site situation requirements, helping countries better respond to natural disasters and geographical restrictions.
