PY002 三轴云台
Axis Gimbal Storm32BGC Storm32BGC Three-axis Gimbal (actual product does not include camera)
Product name: GOPRO3/GOPRO4CNC metal brushless 3-axis gimbal.
Motor model: 2206/100T brushless motor: 2 pieces, 2805/100T brushless motor: 1 piece
Driver board: STORM32BGC
Firmware version: o323bgc-release-v090
Hardware version: V130
Working voltage: 3-4S (11.1-16.8V)
Working current: 350mA
Joystick control angle: PITCH: -25 degrees + 25 degrees / ROLL: -25 degrees + 25 degrees / YAW: -90 degrees + 90 degrees.
Switch control mode: lock/follow
Specification size: 80*80*100mm (L*W*H)
Packing size: 10*10*10cm
Weight: 180g
Packing weight: 272g
Scope of application: GOPRO series compatible cameras.
Maximum load weight that can be withstood: 150g
PWM frequency: 50Hz
PWM duty cycle: period 20ms, high level corresponds to 1ms-2ms
Period: 20ms
Power connector: JST and HX
How to install:
1. Remove the damping ball and open the top mounting plate
2. Lock the mounting plate to the lower part of the aircraft with screws
3.Install the vibration damping ball
4. Install the camera and tighten the camera with straps.
Instructions for use
After installing the camera (be sure to install the camera, otherwise it will keep shaking), stabilize the gimbal for about 20 seconds after powering on (do not shake the gimbal, keep the gimbal hanging and off the ground). After hearing a sound, you can use it normally.
Pitch can be controlled via receiver or other separate PWM channels
Follow mode or lock mode can be set
Angle mode or speed mode can be set
Note: The gimbal does not include the camera in the photo, this price is for the full set without adjustment!
| Performance Parameters |
1. Processor: STM32F103RCAT72 MHZ 2. Motor drive: DRV8313 has short circuit and overheating protection 3. Onboard Bluetooth can be installed 4. The maximum jitter angle of STORMARM 32-bit precision algorithm does not exceed 1 degree (ALEXMOS 8-bit is 3 degrees) 5. The gyroscope sampling frequency is as high as 700HZ (ALEXMOS 8-bit only 200HZ) 6. Onboard gyroscope and acceleration sensor (MPU6050) 7. Infrared LED interface 8.FUTABA S-BUS 9.SPEKTRUM SATELLITE end 10. Up to 7 channels of PWM/SUM-PPM input/output 11. Each axis can be connected to an analog joystick 12. Additional 12C port (2C#2) to facilitate external connection of 6050 sensor to replace the onboard sensor 13.3 AUX interfaces 14. Wide voltage input: 9-25VOR 3-6S, anti-reverse power supply design 15. Motor drive current: Maximum 15A per phase per motor, fully supports 5-inch to 8-inch high-power motors 16. Standard control panel size: 50MM*50MMD3MM screw hole spacing 45MM 17. The default is to solder the bent pin. 18. Side-exit needle quality assurance half-year warranty |
| STORM32BGC Features |

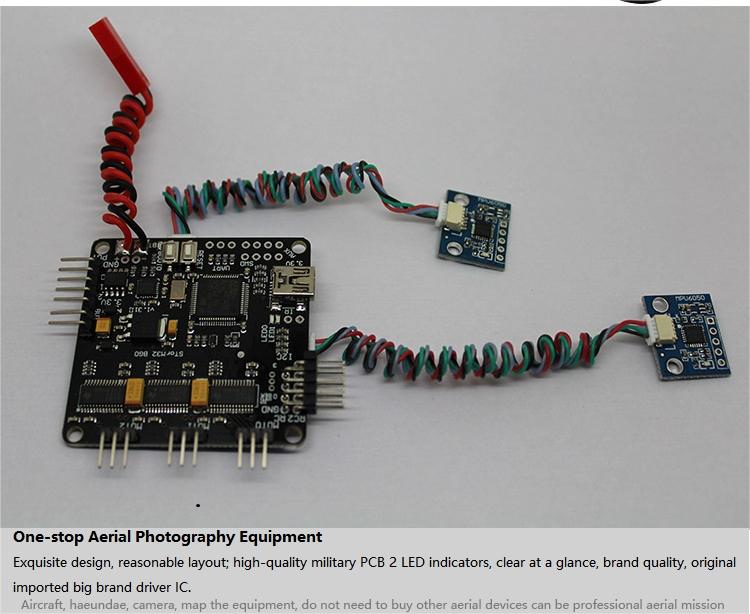

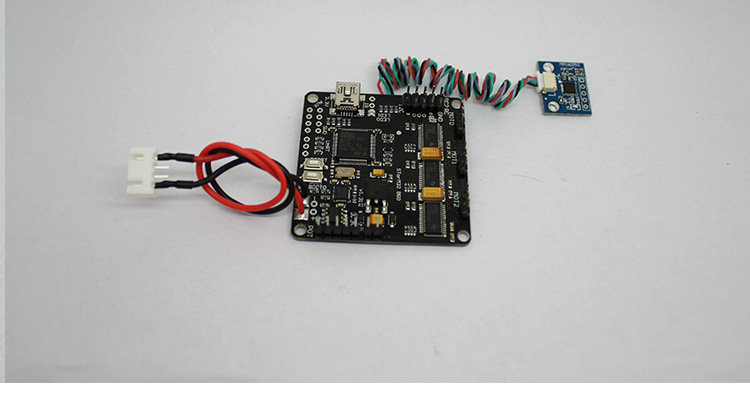

1. Exquisite design and reasonable layout 2. High quality military PCB 3.2 LED indicators, clear at a glance 4. Brand quality, original imported big brand driver IC 5. Intelligent 32-bit MCU, faster processing speed and more responsive intelligent sensor detection position. 6. Large package LDO, stronger current and better stability. N times stronger than switching power supply. |
| STORM32BGC Selling Points |
1.FUTABA S-BUS /SPEKTRUM SATELLITE port, no longer need a lot of wires. 3 lines to get the receiver. 2. Onboard Bluetooth can be added to support parameter adjustment via mobile phone, so you don’t need to bring a computer with you when you go out. 3. Up to 7 channels of PWM/SUM-PPM input/output, multiple interface methods, no need to worry about insufficient interfaces. You can directly connect the potentiometer rocker, no need to buy another adapter board, and you can save money by using two. 4. You can connect an infrared LED light, and you no longer need a conversion board to control the camera, just one LED. 5. Can be upgraded at any time, absolutely original and authentic 6. Large output current: Original imported driver IC from a big brand, which can drive 5208 large size motors. 7. Higher safety: using high-quality key capacitor filtering, the power supply has no interference, no crashes, and no shins. 8. Larger power IC design, better heat dissipation, more stable performance, and not easy to be damaged. 9. Multiple power interface modes, multiple choices: JST and XH |
