32位65A
Product features:
1. The PCB adopts high-end 6-layer 3oZ thickened copper skin, applies high-end resin plug hole PCB production technology, and has a double pad design, which has stronger overcurrent capability and good heat dissipation.
2. MOS adopts imported 40V high current resistance MOS, which has long life and strong load capacity.
3. There is a spare pad for flight control signal connection.
4. Use industrial grade LDO, resistant to high temperatures.
5. Use high-quality Japanese Murata capacitors with strong filtering performance.
6. Supports ESC telemetry data return and can monitor motor speed and temperature in real time
| Product specifications | |

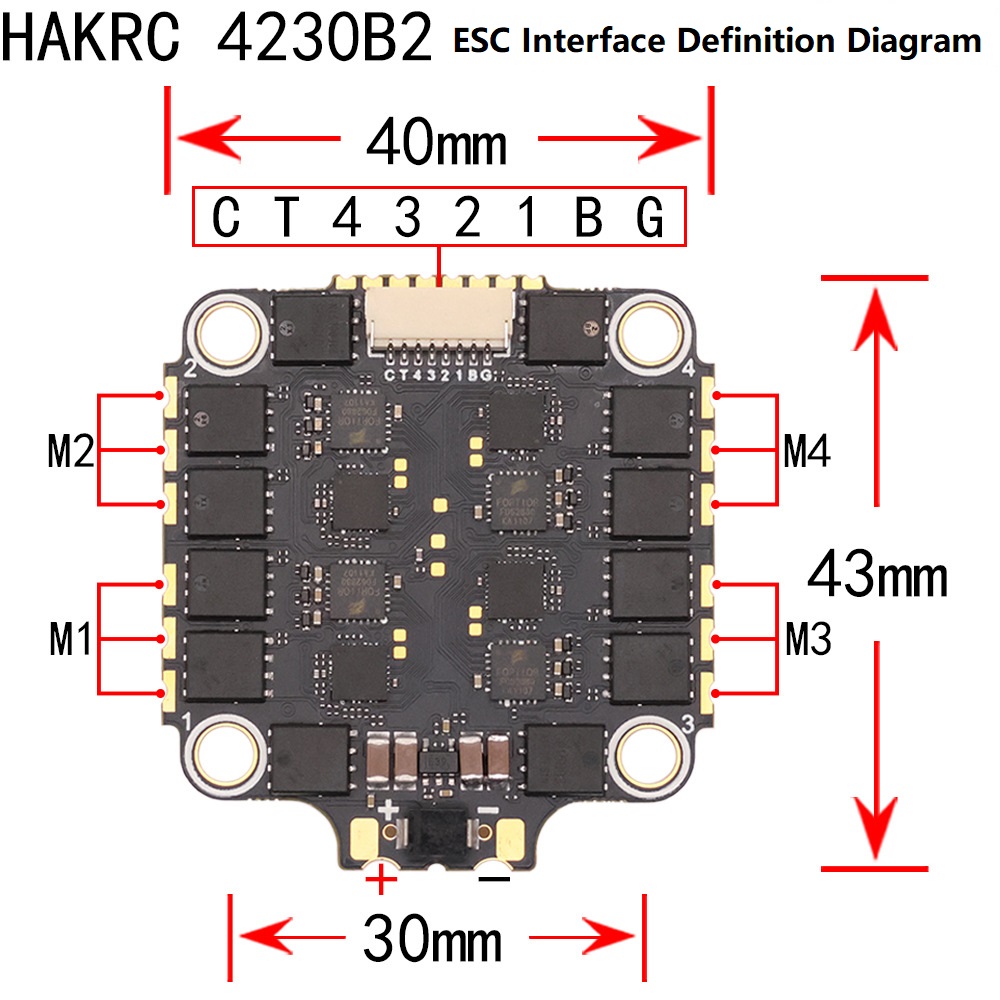

Size: | 40*43mm (30.5mm-30.5mm mounting hole distance) |
Packing size: | 64*64*35mm |
Product net weight: | 14g |
Packing weight: | 53g |
ESC parameters: | |
Current ratio | 160 |
| Continuous current: | 65A |
| Peak current: | 75A |
| Input voltage: | 2S-8S Lipo |
| ESC firmware: | HAKRC_AT4G_Multi_32.9 Hex |
| Protocol support: | PWM, Oneshot125， Oneshot42, Multishot, Dshot150， Dshot300， Dshot600 |
High quality hardware:
AT32F421 main control chip, operating frequency up to 128MHz. MOS imported from Japan, three-in-one IC driver FD6288Q driver, imported high-quality Murata capacitors, using high-end resin plug hole PCB production technology, all using metallized edges to prevent the pads from falling off during use; 3 ounces of copper thickness, 6 The laminate greatly reduces heat generation and is more efficient.
Hardware: PWM, Damped Light
Hardware PWM drives the motor with low noise and smoother throttle response. Damped Light technology and regenerative braking function make motor deceleration more sensitive and effective, and control more precise; active freewheeling technology allows the battery to recycle power and extend battery life.
