32-bit 65A Four-in-one Electronic Speed Controller Racing Ride 20x20mm2-8S

Product features:

1. The PCB uses high-end 8-layer 2oZ thickened copper skin, applies high-end resin plugged hole PCB production technology, and has a double pad design, which has stronger over-current capability and good heat dissipation.
2. MOS adopts imported 40V high current resistance MOS, which has long life and strong load capacity.

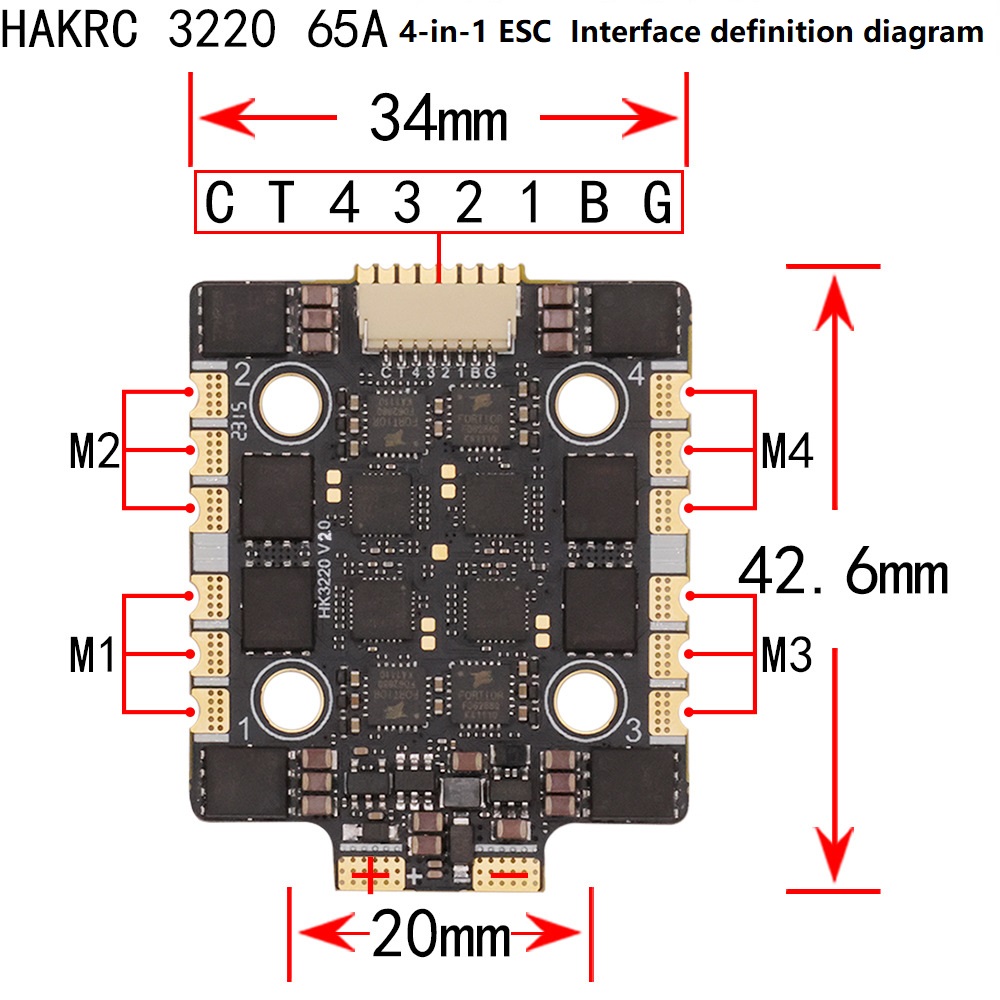

3. There is a spare pad for flight control signal connection.
4. Use industrial grade LDO, resistant to high temperatures.
5. Use high-quality Japanese Murata capacitors with strong filtering performance
6. Supports image transmission of ESC telemetry data.

High-quality hardware:

AT32F421 main control chip, operating frequency up to 128MHz. MOS imported from Japan, three-in-one IC driver FD6288Q driver, imported high-quality Murata capacitors, high-end resin plug-hole PCB production technology, double pad design, all using metallized edges to prevent the pads from falling off during use; 2 ounces of copper thickness, 8-layer board, greatly reduces heat generation and is more efficient.

Hardware: PWM, Damped Light

Hardware PWM drives the motor with low noise and smoother throttle response. Damped Light technology and regenerative braking function make the motor deceleration more sensitive and effective, and the control more precise; active freewheeling technology allows the battery to recycle power and extend the battery life;
