| Quantity: | |
|---|---|
F722 V2
| Product specifications | |
| Packing size: | 64*64*35mm |
Product net weight: | 18g |
Packing weight: | 66.5g |
| Flight control specifications and dimensions | |
| Flight control size: | 29x29mm |
| Flight control net weight: | 6g |
| Installation hole distance: | 20*20mm 4mm |
| Processor: | STM32F722RET6 |
| Gyroscope: | ICM42688 dual gyroscope |
| BEC: | 5V/2A;10V/2A |
| Storage: | 16MB |
| Input voltage: | 2S-6S |
| Firmware: | HAKRCF7220V2 |
| Uart serial port: | 6 |
| Support external programmable LED | |
| Comes with 6P air terminal | |
ESC parameters: | |
| ESC size: | 34mm*42.5mm |
| ESC net weight: | 11g |
| Fixed hole spacing: | 20mm*20mm Ф4mm |
Continuous current: | 60A |
| Maximum current: | 70A (sustainable for 10S) |
| Current ratio: | 160 |
| Input voltage: | 2S-8S |
| Supports image transmission of ESC telemetry data | |
| Parameter adjustment software: | BLHeliSuite32Activator 32.9.0.3 |
| Protocol support: | PWM, Oneshot125, Oneshot42Multishot, Dshot150, Dshot300, Dshot600 |

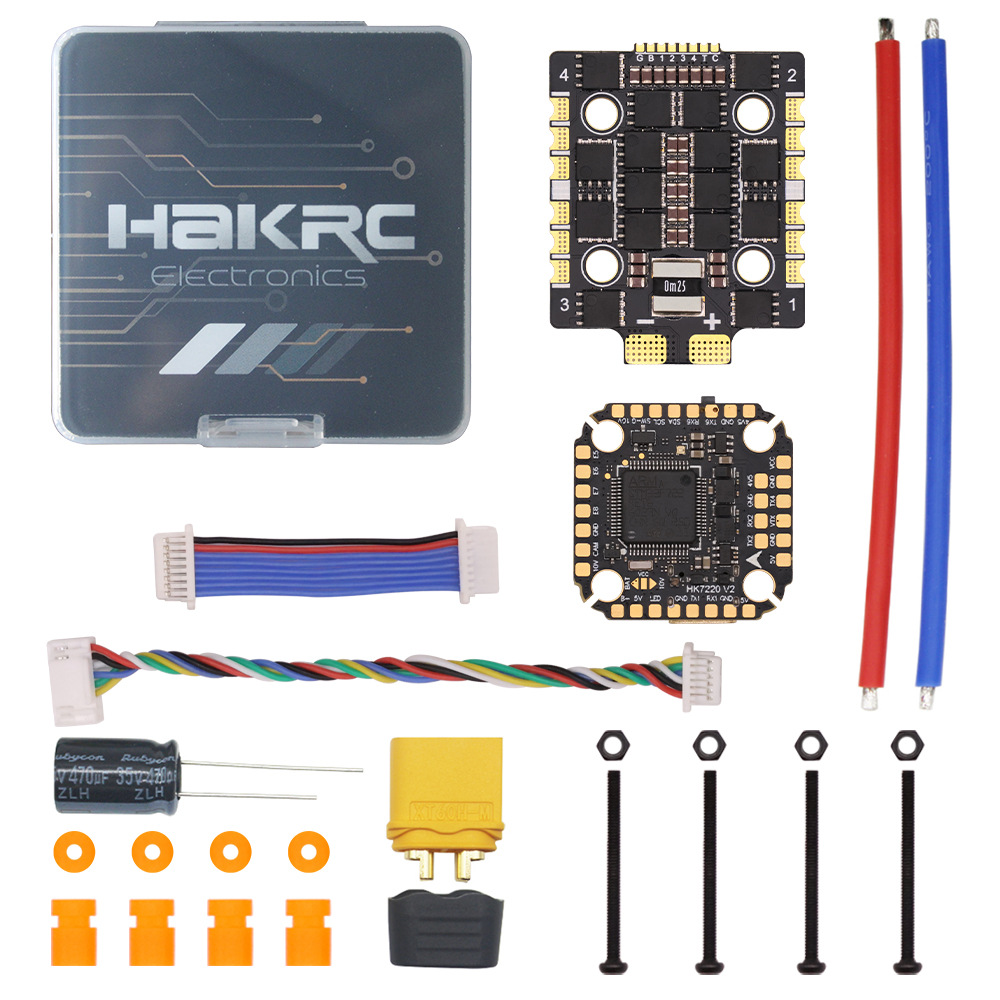

Parts List
M2 orange shock absorbing balls x8,
8p line x1,
DJI6P cable x1,
Capacitor (35v270uf)x1,
XT60 power head x1,
Red and blue power cord x1,
(M2x25mm screw)x4,
Black nuts x4
DJO3 Air Unit three-in-one cable x1,
Instruction x1
